Custom Automotive Injection Molded Components
Custom automotive injection molded components engineered for OEM and Tier 1 specifications. Manufactured via precision thermoplastic injection tooling, our parts meet strict mechanical, thermal, dimensional, and environmental criteria for interior, exterior, and under-the-hood applications.
Production utilizes multi-cavity hot runner molds, automated robotics, and automated process monitoring to ensure batch-to-batch consistency. All operations adhere to IATF 16949 standards, supported by full PPAP Level 3 documentation, IMDS material data entry, RoHS/REACH environmental compliance, and lot-level raw material traceability.
-
Automotive Plastic Insulating Supports
Automotive Plastic Insulating Supports provide electrical isolation and mechanical positioning for vehicle wiring harnesses, busbars, and electronic modules. Designed for high-vibration engine... Add to Inquiry -
Automotive Connector Protective Caps
Automotive Connector Protective Caps safeguard wiring harness terminals, electronic control unit (ECU) headers, and sensor interfaces against moisture, dust, debris, and mechanical impact.... Add to Inquiry -
Automotive Wiring Harness Retainers
Automotive wiring harness retainers secure electrical cables along vehicle body panels, chassis members, and engine compartments. They prevent harness vibration, chafing, and displacement under... Add to Inquiry -
Automotive Sensor Mounting Components
Automotive sensor mounting components provide stable, vibration-resistant structural interfaces for ADAS, LiDAR, radar, camera, and powertrain sensors. In modern vehicles, sensor accuracy depends... Add to Inquiry -

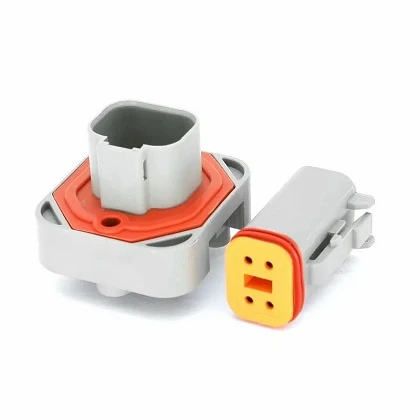

Automotive Connector Locking Components
Automotive connector locking components—including Connector Position Assurance (CPA) devices and Terminal Position Assurance (TPA) wedges—prevent intermittent electrical connections caused by... Add to Inquiry -
Automotive Terminal Retainers
Automotive terminal retainers (secondary locks / TPA) secure electrical terminals inside connector housings, preventing terminal back-out under high vibration and thermal stress. Designed for... Add to Inquiry
Product Range
|
Category |
Typical Applications |
Standard Materials |
Tolerances & Finishes |
|
Interior Trim & Housings |
Dashboard bezels, center console structures, air vents, switch housings |
ABS, PC/ABS, PP-TD20/40 (Low-VOC formulations available) |
± 0.05 mm, VDI 3400 grain textures, high-gloss polish |
|
Under-the-Hood & Functional |
Wiring harness brackets, fluid reservoir caps, sensor housings, air intake ducts |
PA66-GF30, PBT-GF30, PP-GF30 |
± 0.03 mm, high thermal resistance (120°C to 180°C) |
|
Exterior & Structural Clips |
Bumper clips, grille brackets, weatherstrip retainers, mounting brackets |
ASA, POM, PP, TPE |
± 0.05 mm, UV-stabilized, impact-modified formulations |
Manufacturing Capabilities
Production capability centers on high-precision injection molding machinery and integrated secondary operations.
Molding Equipment:
Horizontal toggle and hydraulic injection presses ranging from 160 t to 1,200 t clamping force, equipped with servo-driven take-out robots, centralized resin drying systems, and real-time cavity pressure monitoring.
Tooling Construction:
In-house tool room featuring high-speed CNC machining centers, wire EDM, and mirror EDM. Mold flow analysis (Moldflow) is standard during the DFM phase to predict warpage, weld lines, sink marks, and fiber orientation in glass-filled resins.
Secondary Operations:
Ultrasonic welding, heat staking, automated pad printing, and sub-assembly integration to reduce downstream supply chain steps.
Applications
01
Cabin Interiors:
Dashboard structural skeletons, instrument cluster bezels, seat adjustment bezels, and overhead console housings requiring precise fitment and low volatile organic compound (VOC) emissions.
02
Powertrain & Engine Compartment:
Under-hood brackets, sensor brackets, and fluid management covers subjected to continuous thermal cycling, structural vibration, and automotive fluid exposure.
03
Exterior Body & Chassis:
Fastener clips, trim retainers, and aerodynamic shielding components requiring high tensile strength, fatigue resistance, and environmental weathering stability.
OEM / ODM Services
Engineering and contract manufacturing support spans from initial prototype tool validation to serial mass production.
DFM (Design for Manufacturing):
Engineering review of 3D CAD models (STEP, IGES, CATIA) focusing on draft angles, uniform wall thickness, gate location optimization, and ejector pin placement.
Prototyping:
Rapid CNC machining of engineering plastics or 3D-printed master patterns for low-volume functional testing prior to production tooling investment.
Tooling Management:
Full customer ownership of tooling assets, transparent shot-counter tracking, scheduled preventative maintenance, and secure tool storage.
Quality Control
Strict quality verification protocols and compliance testing are integrated into every production phase.
Dimensional Inspection:
CMM (Coordinate Measuring Machine) verification, optical non-contact scanning, and custom go/no-go gauges for critical functional dimensions.
Material & Environmental Testing:
Melt flow index (MFI), density, ash content testing for glass-filled resins, and rigorous verification of RoHS, REACH, and strict interior VOC/odor emission standards.
Process Control:
Closed-loop machine monitoring tracking injection pressure, melt temperature, packing profile, and cycle time consistency.
Documentation:
Full PPAP Level 3 documentation packages, dimensional measurement results (PSW), material certificates of analysis (CoA), and IMDS submission prior to production release.
fAQ
→ RFQ (Request for Quote)
To initiate an application review or quotation, submit your technical package.
Required Data: 3D CAD model (STEP format), 2D technical drawing with critical dimensions and tolerances, estimated annual volume (EAV), target material grade, and expected delivery destination.
Submit via email: [Insert Procurement / Engineering RFQ Email]
Response SLA: Technical feasibility feedback and commercial quotation provided within 48 hours.
With abundant experience, we are one of the most professional automotive injection molded components manufacturers and suppliers in China. Welcome to buy customized automotive injection molded components at competitive price from our factory. If you have any enquiry about pricelist, please feel free to email us.
