Custom Plastic Connector Components: Engineering & Manufacturing Specifications
Precision-molded plastic components form the structural and insulating foundation of electrical and electronic interconnect systems. Designed to house terminal pins, sockets, and shielding elements, these parts require strict dimensional stability, high dielectric strength, and resistance to thermal and mechanical stress. We manufacture custom and standard connector housings, inserts, modular blocks, and backshells according to customer engineering drawings, utilizing high-performance engineering thermoplastics compliant with global electrical and environmental standards (UL, RoHS, REACH).
-

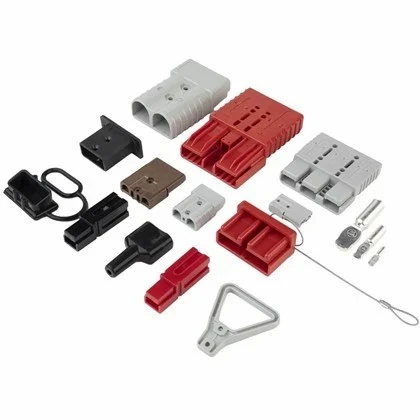

Internal Plastic Supports For Connectors
Internal plastic supports function as the structural and dielectric backbone within multi-pin electrical and electronic connectors. They secure individual contact pins, prevent short circuits... Add to Inquiry -
Connector Seal Retainers
Connector seal retainers secure environmental elastomer mats and silicone seals within multi-pin electrical housings. By maintaining precise axial load across terminal cavities, these components... Add to Inquiry -
Connector Insulating Components
Precision-engineered dielectric components designed to maintain electrical isolation, withstand mechanical stress, and prevent flashover in high-density and high-voltage connector assemblies. Add to Inquiry -
Connector Guide Components
Connector guide components—including guide pins, guide sockets, alignment bushings, and locating posts—are critical mechanical elements that ensure precise blind-mating and alignment for multi-pin... Add to Inquiry -
Connector Locking Components
Connector locking components secure mating cable and panel connectors against mechanical shock and continuous vibration. Designed for heavy-duty industrial, transportation, and automation systems,... Add to Inquiry -
Connector Terminal Retainers
Connector terminal retainers (commonly designated as secondary locks, terminal position assurance [TPA] elements, or connector locks) secure electrical contact pins inside connector housings,... Add to Inquiry
Product Range
|
Component Type |
Common Materials |
Key Performance Focus |
Typical Applications |
|
Connector Housings & Shells |
PBT, PA66 (GF30), PC |
Mechanical impact, snap-fit durability, UL94 V-0 flame retardancy |
Industrial automation, heavy-duty rectangular connectors |
|
Terminal Inserts & Blocks |
LCP, PPS, PPA |
High temperature resistance (>200°C), thin-wall stability, low moisture absorption |
SMT/SMD connectors, automotive under-hood electronics |
|
Modular Jack & Header Bases |
PA4T, PA9T, SPS |
Coplanarity (<0.08 mm), reflow soldering thermal endurance |
Telecom infrastructure, high-density data connectors |
|
Sealing Caps & Backshells |
TPU, TPV, Silicone-hybrid, PP |
Ingress protection (IP67/IP68), strain relief, chemical resistance |
Outdoor field-bus systems, harsh-environment cabling |
Manufacturing Capabilities
Precision molding of electrical connector components requires tight control over shrinkage, warpage, and flash prevention around miniature core pins.
Injection Molding Machinery:
Electric and high-speed servo-hydraulic presses ranging from 50T to 300T, optimized for micro-molding and thin-wall geometries down to 0.3 mm.
Tooling & Mold Design:
In-house tool shop utilizing CNC high-speed milling, wire EDM, and mirror EDM. Mold flow analysis (Moldflow) is performed prior to cutting steel to predict weld lines, air traps, and volumetric shrinkage.
Secondary Operations:
Ultrasonic welding for multi-piece housings, automated insert loading for threaded brass inserts or metal pins, and laser marking for part numbers/lot codes.
Applications
Industrial Automation: Sensor connectors, field-wireable circular connectors (M8/M12), and PLC terminal blocks.
Automotive Electronics: Electronic Control Unit (ECU) headers, sensor housings, and wiring harness connector locks.
Telecommunications & Data Centers: High-speed backplane connector modules and optical transceiver housings.
Medical Devices: Single-use diagnostic equipment interconnects and reusable patient-monitor plug assemblies.
OEM / ODM Services
We operate on a build-to-print (OEM) and co-development (ODM) basis.
Design for Manufacturability (DFM):
Engineering review of customer 3D CAD models focusing on draft angles, wall thickness uniformity, gate placement, and ejector pin locations to eliminate stress concentrations.
Resin Selection Support:
Recommendations based on mechanical load, continuous operating temperature, chemical exposure, and electrical tracking resistance (CTI).
Rapid Prototyping:
CNC machining and 3D printing (SLA/SLS) available for functional form-and-fit testing prior to production tooling investment.
Quality Control
Quality control protocols are integrated across tooling, resin preparation, and post-molding inspection.
Incoming Material Inspection: Melt Flow Index (MFI) testing and moisture analysis on all engineering resins prior to drying and molding.
In-Process Monitoring: Closed-loop injection presses monitoring cavity pressure, melt temperature, and cycle time consistency. Automated vision systems inspect for flash, short shots, and pinhole obstructions.
Metrology: 3D Optical Comparator and Coordinate Measuring Machine (CMM) inspection verifying critical dimensions against 2D GD&T callouts.
Laboratory Testing: UL94 vertical burn testing, thermal shock cycling, and pin retention force testing.
Compliance & Certifications:
ISO 9001:2015 Certified Manufacturing Facility
UL-listed Raw Materials Traceability
RoHS & REACH Compliant Full Material Declarations
FAQ
SEO Metadata & Schema Markup
SEO Meta Tags
Title: Custom Plastic Connector Components | Precision Injection Molding
Description: Manufacturer of custom plastic connector housings, terminal blocks, and inserts. High-temperature engineering thermoplastics, tight tolerances, and ISO 9001 certified.
JSON-LD Schema Markup
Context: Schema.org
Type: Product
Name: Custom Plastic Connector Components
Description: Precision injection-molded plastic housings, terminal inserts, and modular blocks for electrical and electronic connectors using engineering-grade thermoplastics.
Brand: Industrial Precision Molding
Manufacturer: Custom Manufacturing Partner
Category: Electronic Components > Connectors > Connector Accessories
Audience: B2B Procurement, Product Engineers, Contract Manufacturers
RFQ
To receive a formal quotation for your plastic connector components, please provide the following technical details via our RFQ channel:
3D CAD Model & 2D Drawing: STEP, IGES, or Parasolid files with critical dimensions, tolerances, and GD&T specifications.
Material Specifications: Required polymer grade (e.g., PBT-GF30, LCP) or functional requirements (UL94 V-0, operating temperature).
Volume Projections: Estimated annual usage (EAU) and batch size requirements (Minimum MOQ: 3,000–5,000 pieces).
Secondary Requirements: Insert molding, ultrasonic welding, or special packaging needs.
With abundant experience, we are one of the most professional connector plastic components manufacturers and suppliers in China. Welcome to buy customized connector plastic components at competitive price from our factory. If you have any enquiry about pricelist, please feel free to email us.
