Ultra-High Precision – Cavity Accuracy 0.005mm

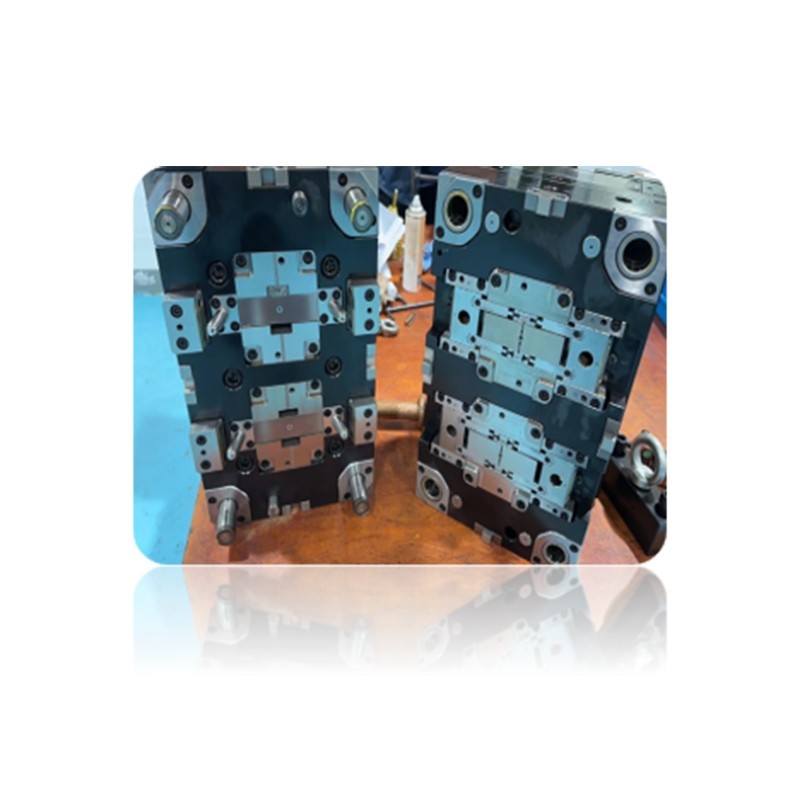

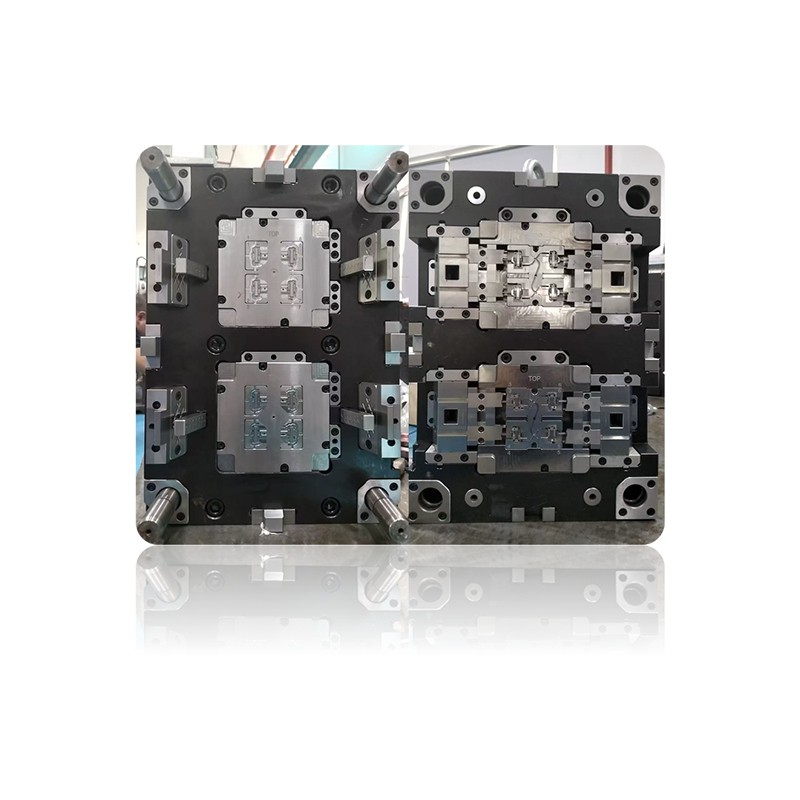

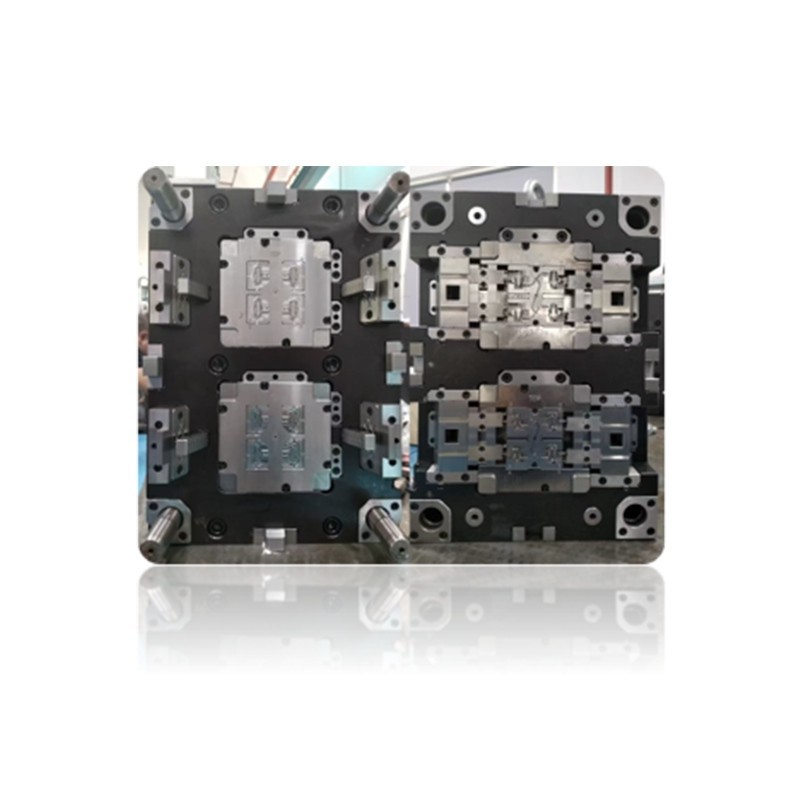

We provide custom Precision Injection Mould manufacturing services, which serve as the foundation for all our injection-molded parts.

We use imported mold steels, including S136 and H13, combined with high-end equipment for manufacturing. With 5-axis CNC machining, we achieve cavity precision within ±0.005 mm. The parting line gap is controlled under 0.002 mm, ensuring ultra-high dimensional accuracy and stable repeatability. This level of precision is suitable for 3C electronics, medical consumables, and automotive precision components.

Efficient Hot Runner – Shorter Cycle Time

We integrate a customized valve-gate hot runner system to achieve multi-point, precise material injection. This eliminates gate residue and significantly improves surface quality of molded parts.

At the same time, injection cycle time is reduced by more than 15%, improving overall mass production efficiency. This Precision Injection Mould is designed to enhance production stability and output efficiency. With over 10 years of manufacturing experience and a 40-person team, we ensure strict process control at every stage.

Long Service Life – Over 1,000,000 Injection Cycles

The mold cavity undergoes nitriding heat treatment, achieving a surface hardness of HV700 or higher. This provides excellent wear resistance and corrosion resistance.

The Precision Injection Mould is capable of exceeding 1,000,000 injection cycles while maintaining long-term dimensional stability. This significantly reduces mold replacement costs. We also provide one-stop service from mold design to mass production support.

Parameter Table (Corrected)

Parameter	Details
Product Name	Precision Injection Mould
Mold Steel	Imported S136, H13
Cavity Precision	±0.005 mm
Parting Line Gap	<0.002 mm
Hot Runner System	Custom valve-gate hot runner
Production Efficiency	Cycle time reduced by 15%+
Mold Life	>1,000,000 injection cycles
Surface Hardness	>HV700 (nitriding heat treatment)
Custom Service	Hot runner, gas-assisted injection, two-shot injection available
