Product Description

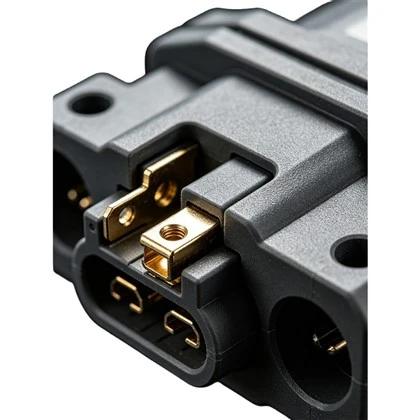

Our High-power DC connectors represent the pinnacle of our precision molding technology. The shell is crafted from specialized, high-temperature engineering plastics using a one-piece injection process, passing stringent pressure and flame-retardancy tests. These High-power DC connectors can operate seamlessly in extreme environments ranging from -40°C to 120°C, making them an ideal fit for heavy engineering machinery and large-scale energy storage power stations.

To ensure peak performance, we use integrated silver-plated terminals in the High-power DC connectors, allowing for a massive 200A DC current capacity. This low-resistance design ensures a stable voltage drop even during high-current transmission, protecting your sensitive high-power equipment from efficiency losses. For outdoor reliability, the molded sealing rings and locking structures achieve an IP67 rating, allowing the connectors to function perfectly in heavy rain or dust-filled construction sites without requiring additional protection.

Technical Specifications

Max DC Current	200A
Terminal Plating	Silver (High Conductivity)
Insulation Material	High-grade Thermoplastic
Protection Level	IP67
Dielectric Strength	3000V AC

Application Areas

Widely applied in EV fast-charging stations, large energy storage systems (BESS), solar power inverters, and heavy-duty DC motor controllers.

Customization & Factory Strength

We offer a full-process customization service, from 3D printing prototypes to final mold production. We can adapt the interface dimensions and protection levels to your specific technical standards, ensuring a 100% fit for your high-power DC applications.

Packaging & Shipping

Each connector is individually packed to prevent terminal damage. We utilize moisture-proof export packaging to ensure products remain in pristine condition during long-distance sea freight.
