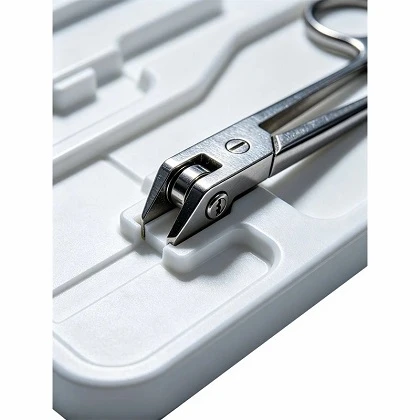

Plastic Positioning Components For Medical Devices
Overview
High-precision plastic positioning components designed for medical diagnostic equipment, surgical tables, and patient support systems. Engineered for exact alignment, structural stability, and resistance to aggressive hospital sanitization protocols. Manufactured via CNC machining or precision injection molding per customer drawings and strict medical OEM specifications.
Specifications
|
Parameter |
Standard / Range |
|
Available Polymers |
PEEK, POM (Delrin), UHMW-PE, Ultem (PEI), Radel (PPSU), Medical-grade ABS |
|
Dimensional Tolerance |
Up to +/- 0.02 mm (depending on geometry and material) |
|
Processing Methods |
5-Axis CNC Milling, CNC Turning, High-Precision Injection Molding |
|
Surface Finish |
0.4 um to 1.6 um Ra, deburred, stress-relieved |
|
Sterilization Compatibility |
Autoclave (134 deg C), EtO, Gamma irradiation, Hydrogen peroxide plasma |
|
Lead Time |
Prototypes: 5-7 business days; Production: Subject to volume and tool readiness |
|
Compliance & Traceability |
Raw material CoA, FDA-compliant resins, USP Class VI available upon request |
Features
Radiolucent Properties: Low X-ray attenuation profiles for components used directly within imaging paths (MRI, CT, X-ray couches).
Chemical Resistance: Withstands repeated exposure to quaternary ammonium compounds, hydrogen peroxide, and sodium hypochlorite disinfectants without stress cracking.
Low Friction & Wear: Self-lubricating engineering plastics (e.g., POM, PEEK) ensure smooth, binding-free linear and rotational positioning.
Strict Dimensional Stability: Annealed raw stock and controlled machining parameters prevent warping during post-processing or thermal cycling.
Materials & Manufacturing
Approved Medical Polymer Grades
PEEK (Polyetheretherketone): High mechanical strength, excellent fatigue resistance, and full autoclave durability.
POM (Polyoxymethylene / Delrin): High stiffness, low moisture absorption, ideal for high-precision mechanical alignment fixtures.
PPSU / PEI: Superior impact strength and thermal resistance for reusable structural housings and locking blocks.
Manufacturing Infrastructure
Machining: Hermle 5-axis CNC machining centers equipped with high-speed spindles for complex geometries without repositioning errors.
Molding: Electric injection molding machines with closed-loop process monitoring to eliminate sink marks and internal voids in thick-walled structural parts.
Post-Processing & Packaging: Ultrasonic cleaning lines, cleanroom-compatible deburring stations, and medical-grade cleanroom bagging/packaging options available upon request.
Applications
Imaging Systems: Patient couch extension blocks, coil locking mechanisms, and laser alignment brackets for MRI and CT scanners.
Surgical Tables: Radiolucent headrests, lateral support clamps, and articulation locking wedges.
Rehabilitation Equipment: Adjustable joint limiters, sliding tracks, and patient restraint mounts.
Customization
Engineering Support: DFM (Design for Manufacturability) review on customer-supplied STEP or IGES files to optimize wall thickness, draft angles, and tolerance stacks.
Prototyping: Rapid CNC machining of functional prototypes in final-grade polymers within 5 to 7 business days.
Secondary Operations: Threaded insert installation (Keensert/Helicoil), laser-etched serial numbers for component tracking, and custom color-coding.
QC
Inspection Equipment: Hexagon CMM (Coordinate Measuring Machine) and Keyence optical image dimension measurement systems.
Process Control: ISO 13485 certified quality management system ensuring full lot traceability from raw material pellet/rod to finished component.
Verification: 100% dimensional inspection available for critical-tolerance features; material test reports (MTR) provided with every shipment.
FAQ
Q: Can you provide FDA-compliant or USP Class VI certified raw materials?
A: Yes. We source virgin resins from certified global suppliers (such as Victrex, Ensinger, and Quadrant) and supply full Certificates of Analysis (CoA) and material compliance documentation with each order.
Q: What file formats do you accept for custom component evaluation?
A: We accept STEP, IGES, Parasolid, and SolidWorks files. 2D PDF drawings with explicit geometric tolerancing and surface finish requirements are required for final manufacturing.
Q: How do your plastic components perform under repeated steam autoclaving?
A: Selection depends on the polymer specified. PEEK, PPSU, and PEI maintain structural integrity and dimensional stability through hundreds of standard 134 deg C autoclave cycles. We assist in selecting the optimal resin based on your sterilization protocol.
RFQ
To expedite your quotation, please provide the following details:
2D/3D CAD data (STEP format preferred).
Specified polymer grade or functional performance requirements (sterilization method, load requirements).
Estimated annual volume or batch size.
Quality documentation and packaging requirements (e.g., CMM report, material CoA, cleanroom packaging).
