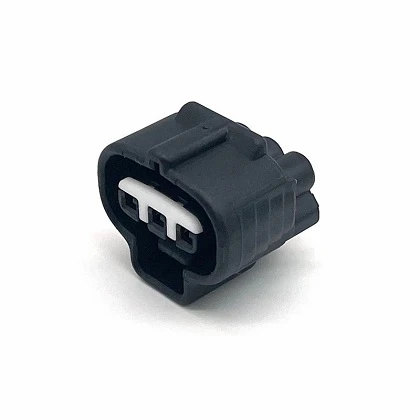

Plastic Support Components For Electronic Connectors
Overview
Plastic Support Components for Electronic Connectors provide structural isolation, mechanical retention, and precise pin alignment in high-density connector assemblies. Designed for automated surface-mount (SMT) or through-hole manufacturing processes, these insulators and housings maintain dimensional stability under high thermal stress during reflow soldering. Built to exact OEM specifications, our components ensure reliable signal transmission across industrial, automotive, and telecommunications environments.
Specifications
|
Parameter |
Technical Specification |
|
Standard Engineering Resins |
LCP (Liquid Crystal Polymer), PPA, PA6T, PPS, PBT, PC (Polycarbonate) |
|
Dimensional Tolerance |
Down to +/-0.01 mm for micro-pitch geometries |
|
Minimum Wall Thickness |
0.15 mm for ultra-thin profile connectors |
|
Flame Retardancy |
UL94 V-0 rating across all material grades |
|
Thermal Performance |
Continuous use temperature up to 240 C (LCP/PPS grades) |
|
Electrical Properties |
Dielectric strength >20 kV/mm; Volume resistivity >10^14 Ohm*cm |
|
Regulatory Compliance |
RoHS, REACH, and Halogen-Free certified |
Features
High Thermal Stability: Formulated with high-temperature thermoplastics to resist blistering or warping during lead-free infrared reflow soldering (260 C peak).
Precision Pin Retention: Engineered mold cavities ensure exact positioning and secure retention force for stamped or machined contact pins.
Low Moisture Absorption: Specialized resin selection prevents dimensional shift and dielectric degradation in humid operating environments.
Flash-Free Micro-Molding: Optimized gate design and high-pressure clamping eliminate resin flash around delicate terminal cavities.
Materials & Manufacturing
Resin Selection: Sourced from tier-1 resin compounders (e.g., Celanese, Solvay, DSM) with verified lot traceability and accompanying Certificate of Analysis (CoA).
Molding Equipment: Electric and high-speed hybrid injection molding machines (Fanuc, Sodick) ranging from 30T to 150T, equipped with closed-loop process controls.
Mold Tooling: High-precision CNC machined and mirror-polished tool steel molds (e.g., Nak80, S136) featuring multi-cavity balancing for batch consistency.
In-House Capability: Precision tool maintenance, automated deflashing, and camera-based vision sorting integrated directly into the production line.
Applications
Automotive Electronics: Electronic Control Unit (ECU) interface headers, sensor connectors, and infotainment wiring harnesses.
Industrial Automation: Heavy-duty modular connectors, PLC backplanes, and sensor junction blocks.
Telecommunications: High-speed data transceivers, server rack backplane connectors, and fiber-optic adapter housings.
Consumer Electronics: Ultra-thin board-to-board connectors in portable devices and wearable tech.
Customization
Custom Tooling (OEM/ODM): Built strictly from customer-provided STEP/IGES 3D CAD data and 2D engineering drawings.
Resin Customization: Tailored flame-retardant, glass-fiber reinforced, or mineral-filled formulations to meet specific mechanical or electrical targets.
Color Coding: Custom pigment compounding for visual polarity and circuit identification.
Prototyping: Rapid steel/aluminum tooling trials available for functional testing and design validation prior to mass production.
QC
Inspection Protocol: 100% automated optical inspection (AOI) combined with statistical process control (SPC) monitoring critical dimensions during production.
Metrology Equipment: Keyence optical comparator, 3D coordinate measuring machine (CMM), and digital microscope inspection for micro-features.
Functional Testing: Insertion/withdrawal force testing, terminal retention tests, and high-voltage dielectric breakdown testing per ASTM/IEC standards.
Quality Documentation: Full PPAP (Levels 1-3), ISIR, FAI, and raw material CoAs provided upon request.
FAQ
Q: What is your standard lead time for custom tooling and initial samples?
A: Tooling design and sample fabrication typically take 3 to 4 weeks depending on part geometry complexity.
Q: Can you handle micro-miniature wall thicknesses for fine-pitch connectors?
A: Yes, our high-precision electric presses and specialized tool venting support wall thicknesses down to 0.15 mm without flash.
Q: What file formats are required for quotation?
A: Please submit 3D CAD models in STEP or IGES format alongside a 2D PDF drawing detailing critical tolerances, material grades, and finish requirements.
Q: How do you ensure lot-to-lot material consistency?
A: We source exclusively from authorized resin distributors, maintain strict parameter logs on all molding presses, and archive retained samples from every production run for 2 years.
RFQ
To request a technical evaluation or quotation for your connector component project, please provide:
3D CAD data (STEP format) and 2D manufacturing drawings.
Projected annual volume and batch size requirements.
Specified resin grade or performance requirements (operating temperature, flame rating).
Target delivery schedule and required quality documentation (e.g., PPAP Level 3).
