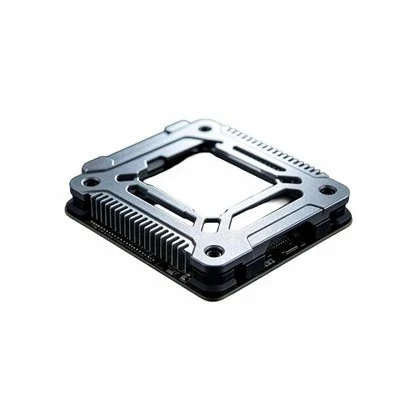

Electronic Device Internal Brackets | Custom OEM Sheet Metal Fabrication & Machining

Electronic Device Internal Brackets provide high-precision structural support, thermal management pathways, and electromagnetic (EMC) grounding inside electronic enclosures. Engineered directly from your 3D CAD models, these components secure printed circuit boards (PCBs), power supplies, and internal sub-assemblies against mechanical shock and operating vibration.

Manufactured in our ISO 9001 and IATF 16949 certified production facility, operations span CNC fiber laser cutting, turret punching, progressive die stamping, automated press brake bending, and in-house fastener insertion.

Technical Specifications

Parameter	Specification & Manufacturing Capability
Material Grades	Cold Rolled Steel: SPCC, SECC (Pre-zinc plated)Aluminum: 5052-H32, 6061-T6Stainless Steel: 304, 316Spring Steel: Heat-treated
Material Thickness	0.5 mm to 6.0 mm (± 0.02 mm raw material thickness tolerance)
Machining Processes	CNC Fiber Laser Cutting, CNC Turret Punching, Progressive Stamping, CNC Press Brake Bending, CNC Milling
Dimensional Tolerances	Linear dimensions: ± 0.05 mmForm/Bend angles: ± 0.5°Hole-to-hole pitch: ± 0.03 mm
Hardware Integration	Self-clinching studs, nuts, and standoffs (PEM standards); blind threaded holes; spot welding
Surface Finishes	RoHS-compliant Clear/Yellow Chromate ConversionAnodizing: Type II / Hard Coat Type IIIPolyester/Epoxy Powder CoatingElectroless Nickel Plating & Passivation
Inspection & Testing	ASTM B117 Salt Spray test (up to 500h), Hexagon CMM 3D inspection, Push-out/Torque-out fastener testing

Core Engineering Features

Precision Structural Rigidity: Customized rib patterns, corner gussets, and optimized bend reliefs prevent chassis twist and shield internal PCBs from mechanical stress during drop and vibration events.

Integrated EMC/Grounding Continuity: Bare-metal contact zones, conductive chemical conversion coatings, and integrated grounding tabs maintain continuous electrical bonding to suppress electromagnetic interference (EMI).

High-Retention Fastener Insertion: Pneumatically controlled insertion presses apply calibrated force to install self-clinching hardware, ensuring high push-out and torque-out resistance without reverse-side marring.

Optimized Airflow Architecture: Strategically placed laser-cut ventilation apertures and channeled internal cutouts direct cooling airflow toward high-heat dissipating components (MOSFETs, processors).

Materials & Manufacturing Infrastructure

Material Selection Criteria
Aluminum (5052 / 6061): Applied in weight-sensitive rackmount and portable enclosures. Delivers an optimal strength-to-weight ratio and corrosion resistance via anodization.

Cold Rolled Steel (SPCC) & SECC: Deployed for heavy-duty industrial chassis requiring high structural rigidity and baseline magnetic shielding. SECC provides built-in zinc protection prior to secondary fabrication.

Stainless Steel (304 / 316): Utilized in medical diagnostic housings and corrosive industrial environments requiring long-term oxidation resistance.

In-House Production Assets
Blanking & Cutting: Trumpf and Bystronic CNC fiber lasers achieve burr-free edge quality with positional accuracies down to ± 0.03 mm, ensuring high material utilization and edge consistency.

Precision Bending: Amada multi-axis CNC press brakes integrated with automatic angle measurement systems compensate for material springback to guarantee batch-to-batch uniformity across mass production runs.

Stamping Lines: Mechanical and hydraulic presses (45T to 300T) run progressive tooling configurations for high-volume, cost-effective bracket manufacturing.

Typical Application Scenarios

Telecom & Networking Hardware: Internal mounting chassis for high-density switches, routers, and 5G base station sub-assemblies.

Industrial Automation Systems: DIN-rail brackets, mounting plates, and internal card cages for PLCs and industrial power supply units.

Medical Diagnostic Devices: Cleanroom-compatible structural brackets for laboratory analyzers and patient monitoring systems.

Commercial & EV Infrastructure: Secure internal frames for smart payment kiosks, EV charging control units, and renewable energy inverter systems.

Customization & DFM Support

Rapid Prototyping: Direct from CAD production via laser cutting and CNC bending within 5 to 7 working days for functional verification.

DFM (Design for Manufacturability) Review: Engineering feedback provided prior to tooling release to optimize bend radii, hole-to-edge clearances, and minimize secondary tooling costs.

Custom Tooling Development: In-house tool room dedicated to building, tuning, and maintaining progressive stamping dies and dedicated welding fixtures.

Quality Control & Traceability

Incoming Material Verification: Spectrometer material analysis paired with Mill Test Certificates (MTC) validates chemical composition for every raw material lot.

In-Process Inspection: First-Article Inspection (FAI) reports generated via Hexagon Coordinate Measuring Machines (CMM) and optical comparators before full production clearance.

Environmental & Mechanical Testing: Salt spray chambers verify coating corrosion thresholds; push-out testers validate structural fastener integrity.

Batch Traceability: Laser-marked lot numbers and serialized packaging ensure complete traceability from raw material coil to final delivery.

Frequently Asked Questions

Q: What 3D CAD and 2D drawing formats are required for quotation?

A: We accept 3D files in STEP, IGES, or XT format, accompanied by a 2D PDF drawing specifying critical tolerances, material grades, and surface finish callouts.

Q: Can you accommodate custom fastener brands like PEM or equivalent?

A: Yes. We routinely source and install standard self-clinching fasteners (nuts, studs, standoffs) conforming to PEM specifications or equivalent engineering standards.

Q: What is the standard lead time for custom sample approval and mass production?

A: Functional prototypes typically require 5–7 days. Volume production orders ship within 15–25 working days depending on progressive tooling complexity and surface treatment requirements.

Q: Are your finishing processes compliant with environmental directives?

A: Yes. All surface finishes (chromate conversion, anodizing, powder coating) strictly comply with RoHS and REACH regulations.

Request for Quotation

To receive a detailed engineering evaluation and commercial proposal within 24 hours, send your package to jessica_huang2025@163.com with the following information:

Engineering Data: 3D CAD model (STEP/IGES) and 2D fabrication drawing (PDF).

Material & Finish: Exact material designation and specified surface coating.

Volume Profile: Estimated Annual Usage (EAU) and required batch sizes per shipment.

Logistics Target: Destination postal code / port and required delivery date.
